Polymorphic: A Kinetic Installation

Polymorphic is a fascinating kinetic installation designed and produced by ten architecture students from Columbia University GSAPP in New York City. The installation was created within Fast Pace/Slow Space, a course taught by Brigette Borders and Mark Bearak. The team included Charlie Able, Alexis Burson, Ivy Chan, Jennifer Chang, Aaron Harris, Trevor Hollyn Taub, Brian Lee, Eliza Montgomery, Vernon Roether, and David Zhai.

Project Description from the Students:

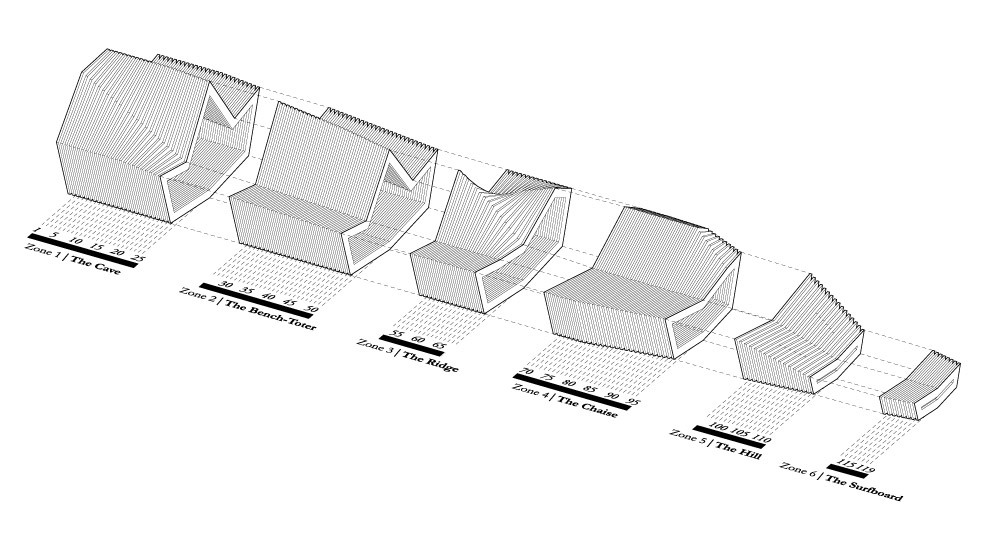

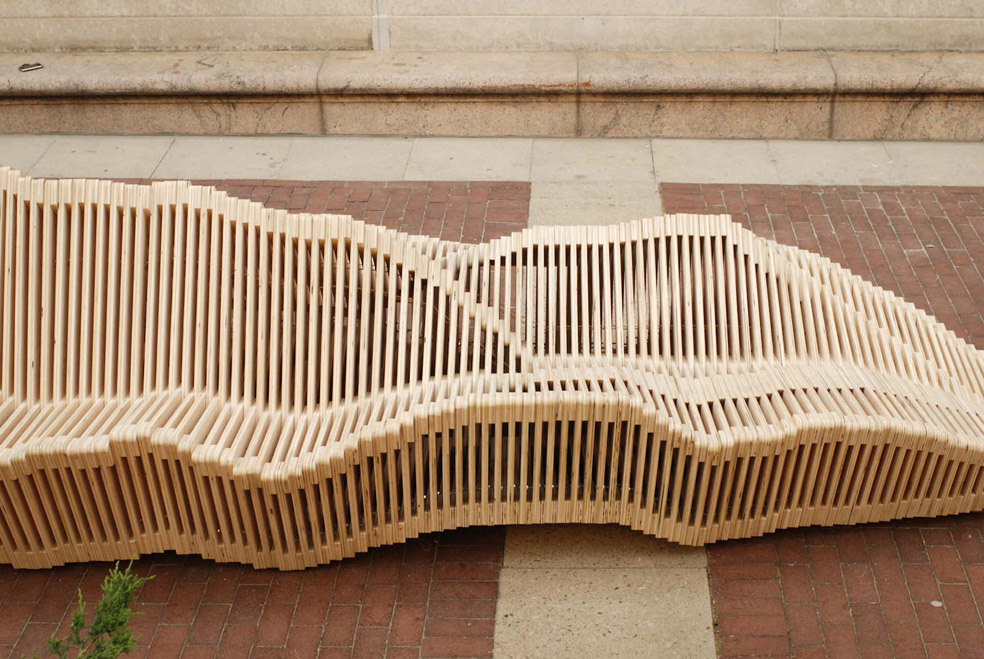

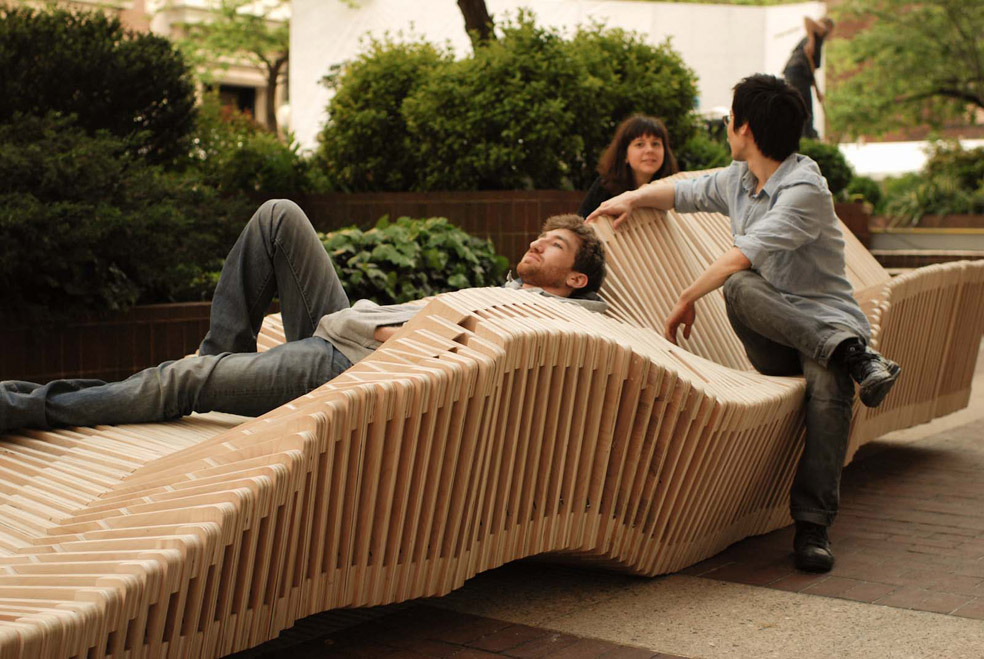

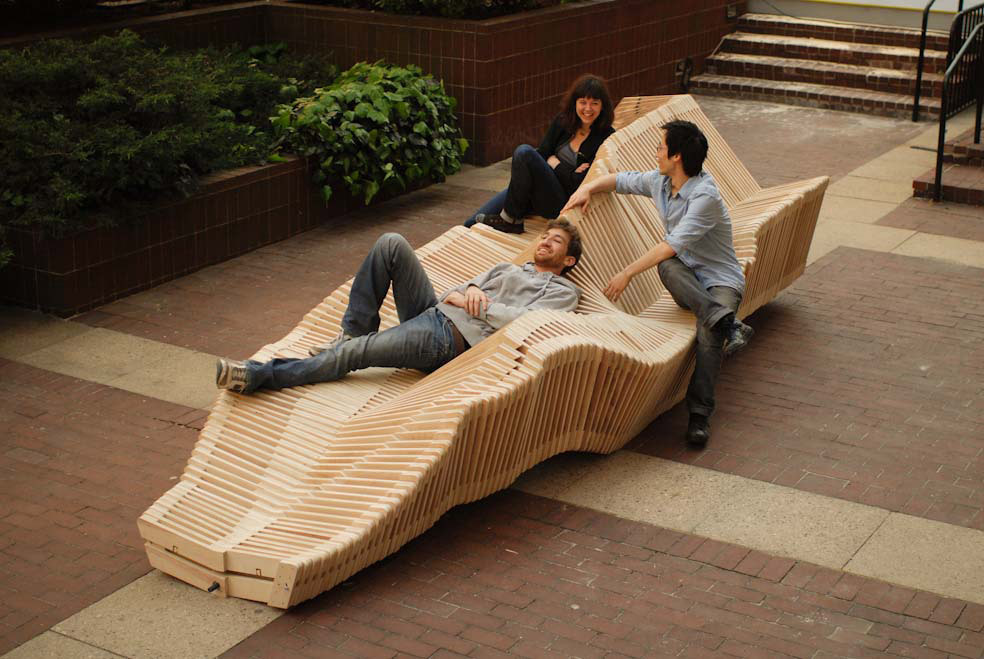

Polymorphic is a kinetic installation utilizing an innovative design and engineering solution inspired by the simple kinetic action of a see-saw and the reverberating motion of a Slinky. The design is comprised of a double-sided bench which transforms through a series of 119 unique and interconnected sections into a chaise lounge and finally an interactive balance board. These sections are connected via an inventive pivot and bolt system which allows the vertical movement of one section to be picked up by others down the line. Together, this motion allows the installation to transform from a series of leveled sections into an undulating form activated through interaction with its occupants.

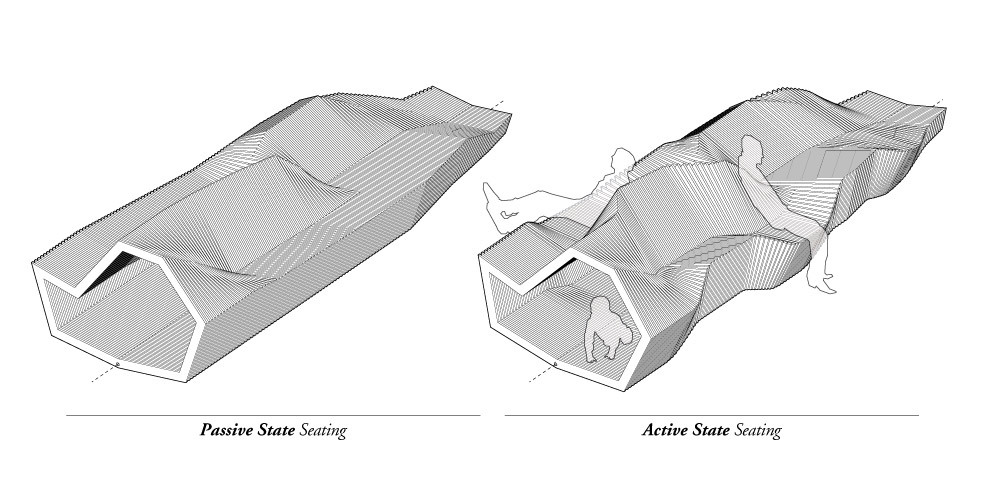

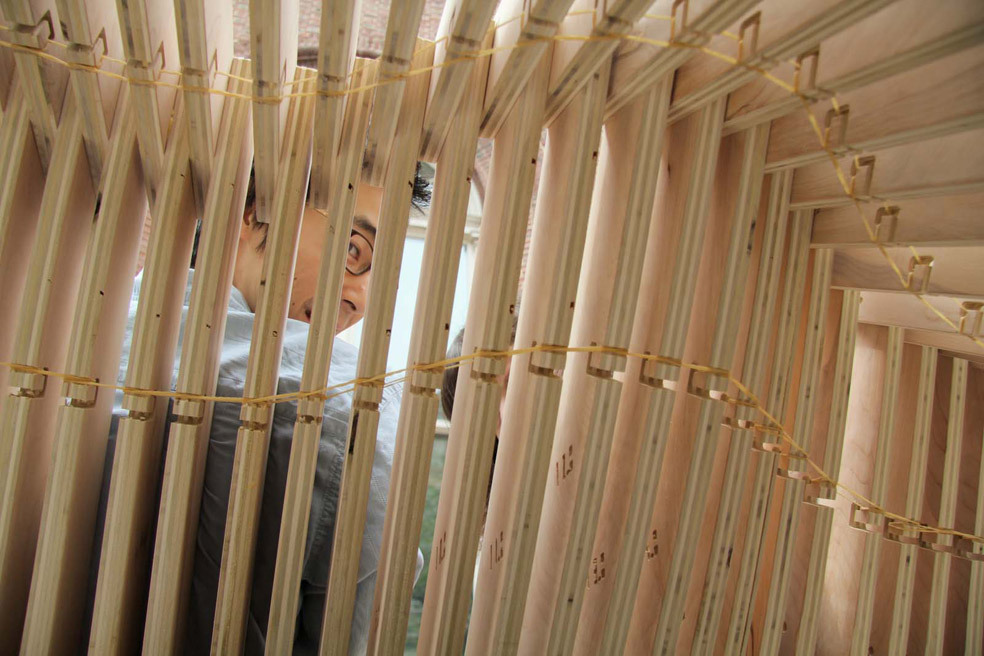

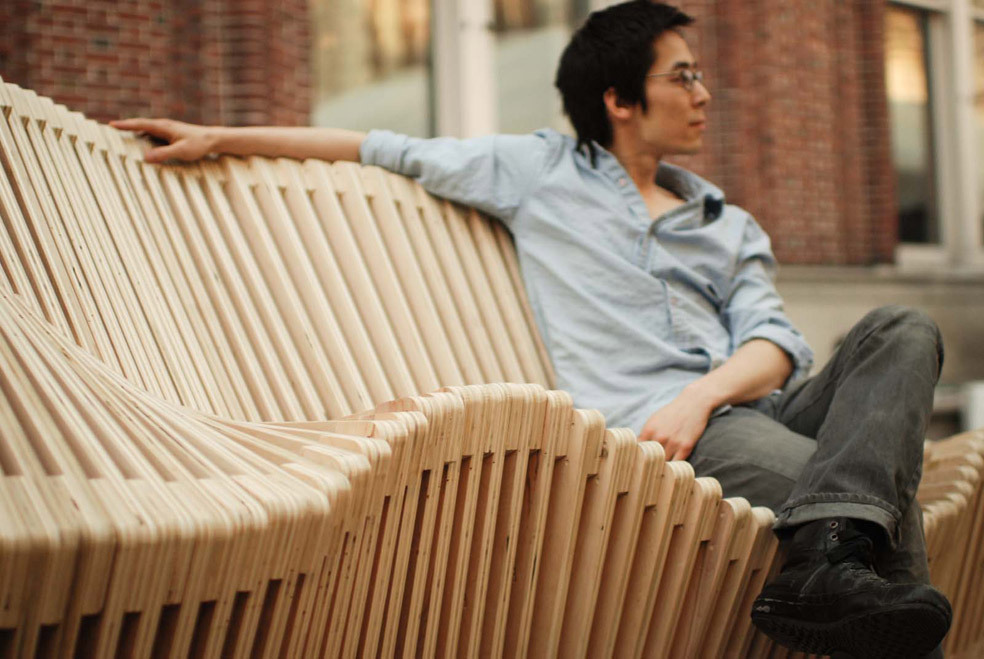

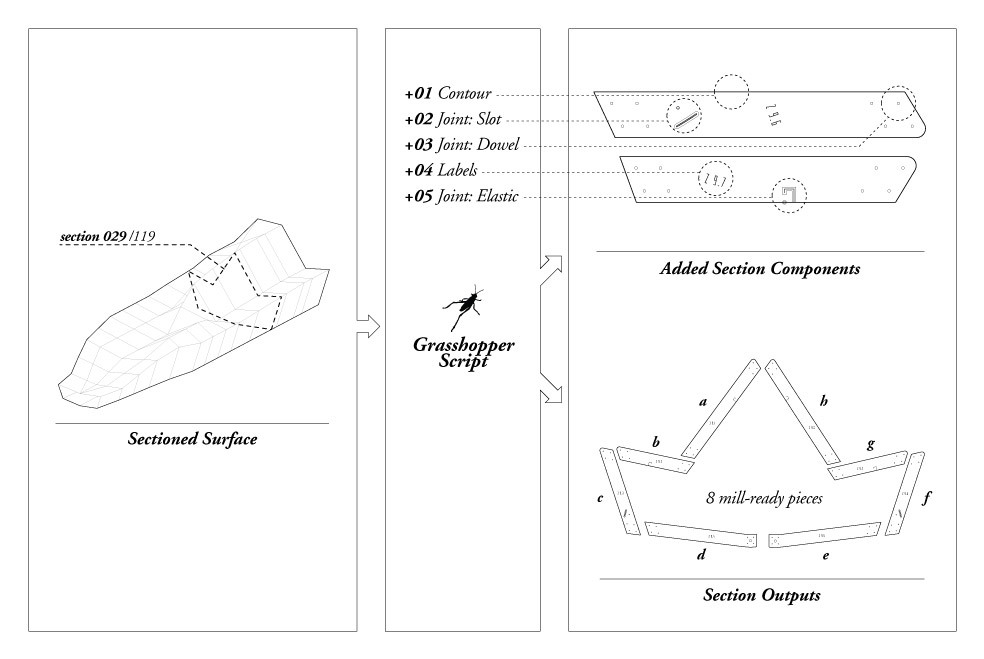

While the overall form of the bench is realized as a continuous landscape, each seating condition was designed according to existing ergonomic profiles in order to maximize comfort and functionality. This is further realized by allowing the tolerance of its motion to conform to the postures of the occupants using simply their weight as a point of activation for the movement of the sections. Furthermore, a series of internal notches linked together by elastic bands and reinforced by couplings located on the central pivot rods prevent lateral movement and ensures safety during motion.

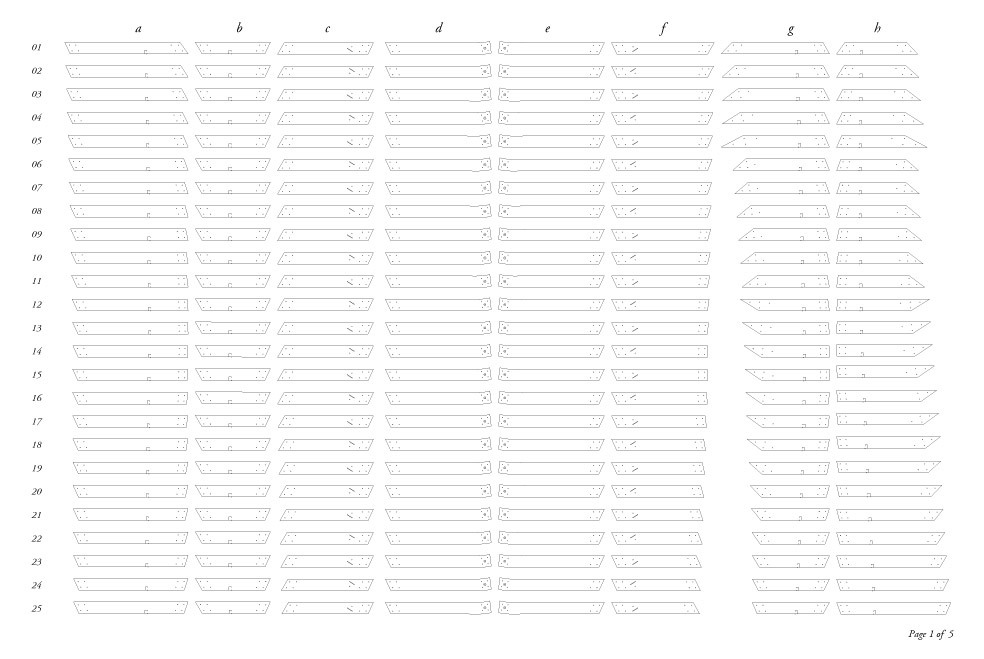

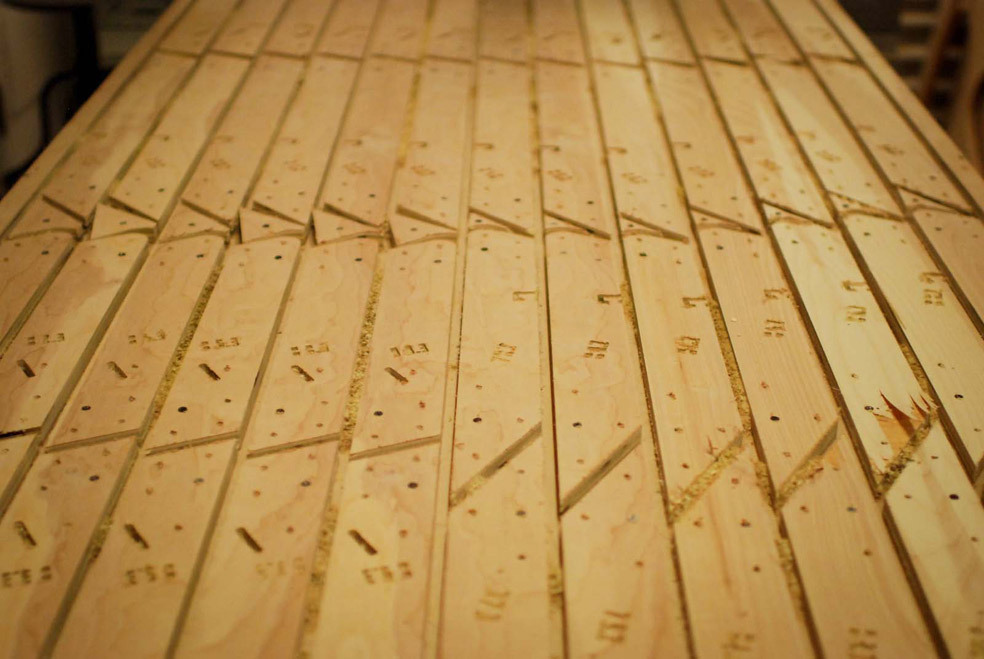

At its core, the design of the installation is not only an inventive solution to a design idea, but also a test of the limits and capabilities of digital fabrication and its role in advancing architectural and industrial design practices. While the installation had a designated scale and dimension, the developed system has the ability to grow much larger and wider depending on the availability of resources and materials. The form of the design can likewise be readily adjusted to suit the conditions and contextual requirements of various spaces and environments. The scalability of the joint system and design together creates a truly parametric system in which its use is not only for aesthetics, but for construction, functionality, and comfort as well.

Design

Project Details:

Design team: Charlie Able, Alexis Burson, Ivy Chan, Jennifer Chang, Aaron Harris, Trevor Hollyn-Taub, Brian Lee, Eliza Montgomery, Vernon Roether, and David Zhai

A product of Fast Pace/Slow Space, a course taught by Brigette Borders and Mark Bearak, at the Graduate School of Architecture, Planning and Preservation, Columbia University. For inquiries contact [email protected].

All photographs courtesy of Jennifer Chang.
